DIGITAL CASTING
Possible to create parts without molds at a low cost. Perfect for trial manufacturing
Lost wax × Digital
Digital casting is a metalworking process that uses a resin model as a prototype. The resin model would be made by the 3D printer and the casting would be conducted in the same flow as lost wax casting.
It is suitable for casting products that do not require a mold, and for trial production in small lots.
It is suitable for casting products that do not require a mold, and for trial production in small lots.
CASTEM Color
COST DOWN
Not required mold production and tooling cost as conventional lost wax casting
FREEDOM
Possible to cast difficult-to-cut products from one piece without tooling cost
SHORT TERM
Reduction of work period made it possible to deliver products in two weeks
SPECIALTY
Good at creating 3D complex shape
COMPLICATED
Possible to handle with various materials such as iron, stainless steel, copper, and aluminum
Examples of Proposals
01

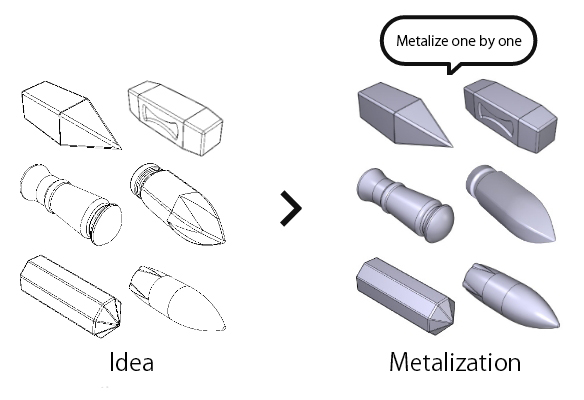

Verification of the prototype by casting without a mold from each one when examining multiple shapes
02

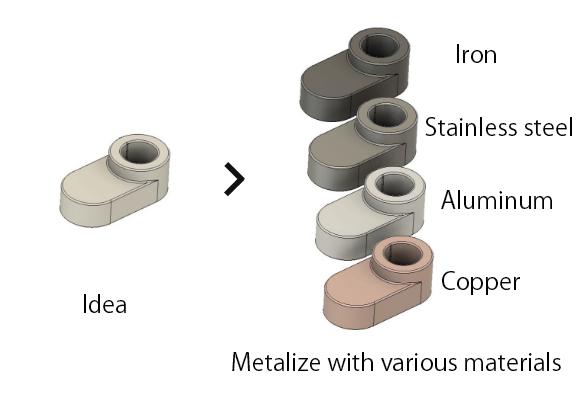

Verification of the prototype of different materials in the same shape
03

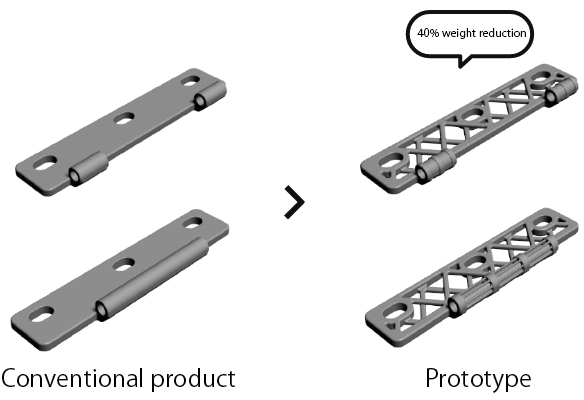

Verification of the strength for casting products
Manufacturing Process
01. 3D printing
Create resin model by 3D printer

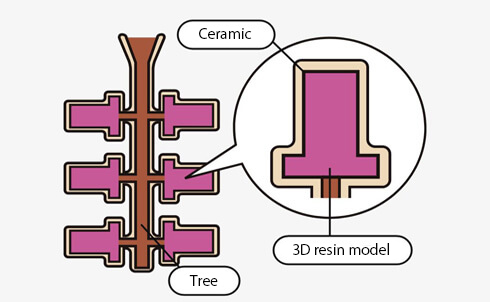

02. Ceramic coating
Coat about 4 to 6 layers of ceramic liquid and powder on the wax tree.

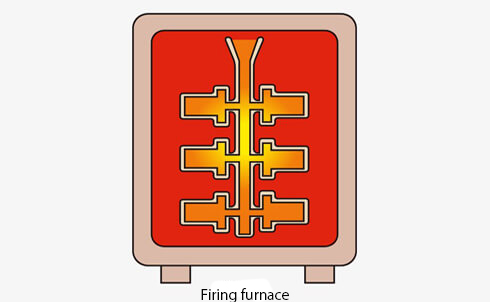

03. Mold firing
Burn out the 3D printed model by heat completely, and sinter ceramic mold.
04. Casting
Pour molten metal into the mold.
Catalog Download
Materials
| Classifications | Materials |
|---|---|
| Carbon steel | S25C, S45C |
| Chromium molybdenum steel | SCM415, SCM435, SCM440 |
| Nickel chromium steel | SNC415, SNC815 |
| Nickel chromium-molybdenum steel | SNCM220, SNCM439, SNCM616 |
| Tool steel | SK105, SKS3, SKD11, SK85, SKD61 |
| High-speed steel | SKH51, SKH57 |
| Austenitic stainless steel | SCS13 (SUS304), SCS14 (SUS316), SUS303, SCS19 (SUS304L), SCS16 (SUS316L), SCS18 (SUS310S), SUSXM15J1 |
| Martensitic stainless steel | SCS1 (SUS410), SCS2 (SUS420J1), SCS2A (SUS420J2), SUS440C |
| Precipitation hardening stainless steel | SCS24（SUS630） |
| Ferritic stainless steel | SUS430 |
| Duplex stainless steel | SCS11（SUS329J1） |
| Heat-resistant steel | SCH13, SCH21 ,SCH22 |
| Special steel | SUJ2 ,SUP10 ,SUM23 |
| Cast iron | FC200 ,FCD500 |
| Aluminum alloy | AC4C ,AC7A |
| Copper alloy | CAC102 (pure copper), CAC302 (HBsC2), CAC403 (BC3), CAC703 (ALBC3), CAC802 (SzBC2), CAC502A (PBC2), CAC203 (YBs C3), CrCu (chromium copper） |
| Cobalt alloy | Stellite 12 |
Size Guides
| Minimum size | approximately 4cm |
|---|---|
| Maximum size | approximately 30cm |
| Minimum weight | approximately 30g (minimum thickness: 2mm) |
| Maximum weight | approximately 30kg |
