CT SCANNING

Inspect the inside in non-destructive and non-contact ways

Are you in trouble with the current inspection method?

Industrial CT scanning may be able to solve your problem.
Industrial CT scanning service is a service that conducts defect detection, dimensional measurement, 3D modeling, and replication in non-destructive and non-contact ways.
It can be used in a wide range of fields such as inspection for voids, cracks, and sinks inside the resin,
solder wettability for electronic components, junction of welding parts, and foreign matter contamination.

Examples of Scanning

CT Scanner

Penetrating Power

Service Flow

Catalog Download

CASTEM Color

MEASUREMENT

Superimposing the basic data on the data measured by the industrial CT scanner makes it possible to visualize the differences between them and output the definite numerical value.
It is possible to easily measure fine products and irregular-shaped objects.

VERIFICATION

It is possible to conduct functional verification and defect detection with the industrial CT scanner.
Visualizing the inner structures by CT scanner helps to identify the cause of the issue promptly.

DUPLICATION

It is possible to duplicate a product that does not have drawing data by taking pictures and making its drawing accurately.
Also, complex shapes that are difficult to reproduce can be duplicated into data.

CONSERVATION

Specimens of organisms, minerals, and historical materials can be saved as 3D data.
Specimens that will be no longer available also can be saved as 3D data in a non-destructive way.

Examples of Scanning

Non-destructive measurements of errors at the time of mold assembly

Inspections of voids on injection molded rubber packing

Inspections of small internal defects

Visualizations of fiber orientation in injection molded parts

Verifications of driving points that have deteriorated over time

Verifications of motor insulation failure

Inspections of foreign matters produced at TIG welding

Visualizations of internal structures after insert molding

CT Scanner

Imaging method	cone beam CT
X-ray source	225kV microfocus X-ray tubes
Maximum voltage	225W
Minimum focal spot diameter	3μm
Image magnification	1.6x - 150x
Voxel size/ resolution	1.33 - 125μm
X-ray detector	16bit 4M pixels Flat Panel Detector (FPD) (2,000 x 2,000 pixel, 200μm pitch)

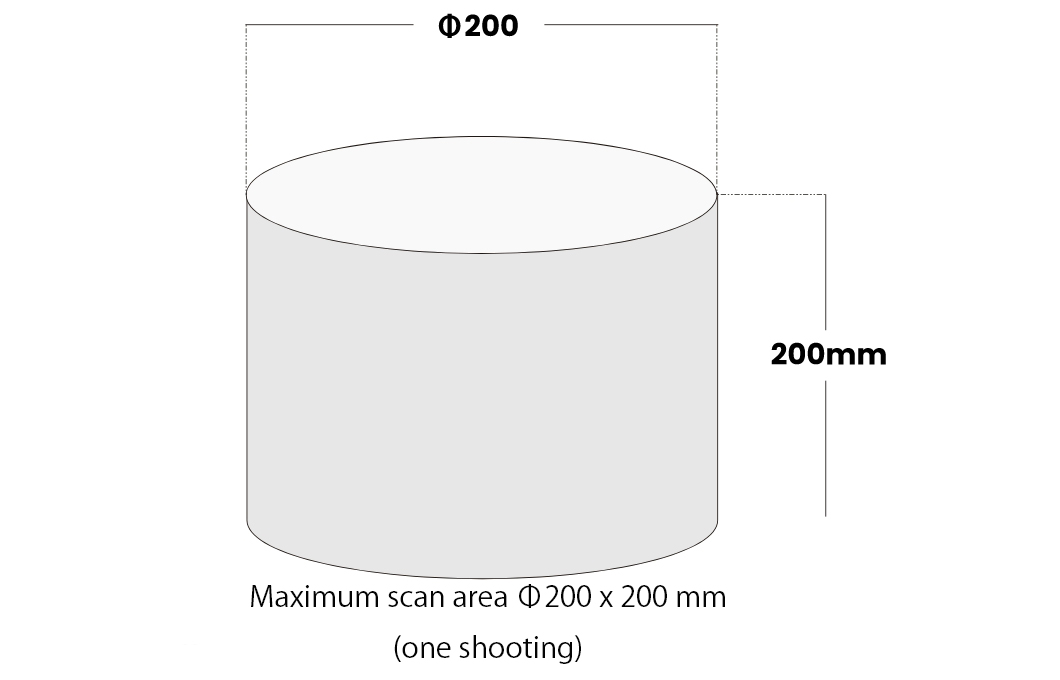

Maximum sample weight	50kg, (5kg for metrology applications)
